刀桿

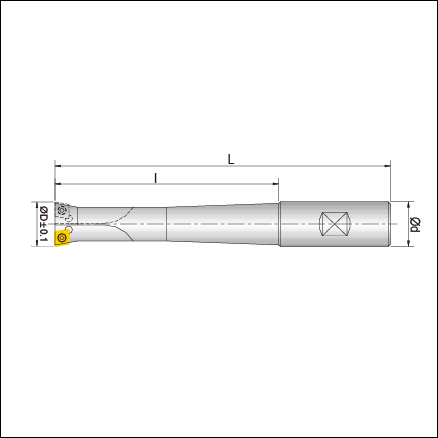

| Order No. | Part No. | ØD | Ød | ℓ | L | 刀片 | 螺絲/板手 |
|---|---|---|---|---|---|---|---|
| 99011-16 | SB20 - TB16L | 15.7 | 20 | 70 | 120 | CCMT060204 |
NS-25060 / 0.9Nm NK-T7 |
| 99011-20 | SB20 - TB20L | 19.7 | 20 | 100 | 150 | ||
| 99011-25 | SB25 - TB25L | 24.7 | 25 | 110 | 166 | ||
| 99011-30 | SB25 - TB30L | 29.7 | 25 | 134 | 190 | CCMT09T308 |
NS-35080 / 2.5Nm NK-T15 |
| 99011-35 | SB32 - TB35L | 34.7 | 32 | 170 | 230 | ||
| 99011-40 | SB32 - TB40L | 39.7 | 32 | 190 | 250 |
CCM.../CCF...CCM.../CCF...
刀片
| Order No. | 尺寸 | ||||
|---|---|---|---|---|---|
| Ic | S | re | |||
| CCMT060204 | NC60 |
|
6.35 | 2.38 | 0.4 |
| NC40 | |||||
| NC10 | |||||
| CCMT060208 | NC40 | 6.35 | 2.38 | 0.8 | |
|
CCMT060204S (單邊預留0.3mm以下) |
NC35 | 6.35 | 2.38 | 0.4 | |
| CCFT060204 | NC2033 | 6.35 | 2.38 | 0.4 | |
| NC9036 | |||||
| CCFW060204 | NC2032 | 6.35 | 2.38 | 0.4 | |
| CCMT09T304 | NC60 |
|
9.52 | 3.97 | 0.4 |
| NC40 | |||||
| NC10 | |||||
| CCMT09T308 | NC40 | 9.52 | 3.97 | 0.8 | |
| NC10 | |||||
|
CCGT09T304HP (鋁合金) |
NC10 | 9.52 | 3.97 | 0.4 | |
| K10 | |||||
切削資料 (Ø16~Ø25mm)
| 工件材質 | 加工狀況 | 刀片材種 | 線速 Vc (m/min) | 二刃進給 (每轉) | |
|---|---|---|---|---|---|
| 碳鋼 | 需五彩亮金(瓷金) | NC60 | 150 (120~180) | 0.15 (0.10~0.20) | |
| 一般切削 |
NC40 NC2033 |
100 (80~120) | 0.10 (0.08~0.12) | ||
| 強制斷屑 | NC35 | 120 (80~150) | 0.15 (0.10~0.20) | ||
| 合金鋼 |
一般切削 |
NC40 NC2033 |
80 (60~100) | 0.15 (0.10~0.20) | |
| 不鏽鋼 | 一般切削 |
NC40 NC2033 |
100 (80~120) | 0.12 (0.10~0.15) | |
| 鑄鐵 | 耐磨鍍層 |
NC10 NC2032 |
150 (100~180) | 0.15 (0.10~0.20) | |
| 鋁合金 | 一般切削 | NC9036 | 200 (150~300) | 0.20 (0.10~0.30) | |
